The adaptability and versatility of the system make Omniablok a universal module suitable for any roof type and installation.

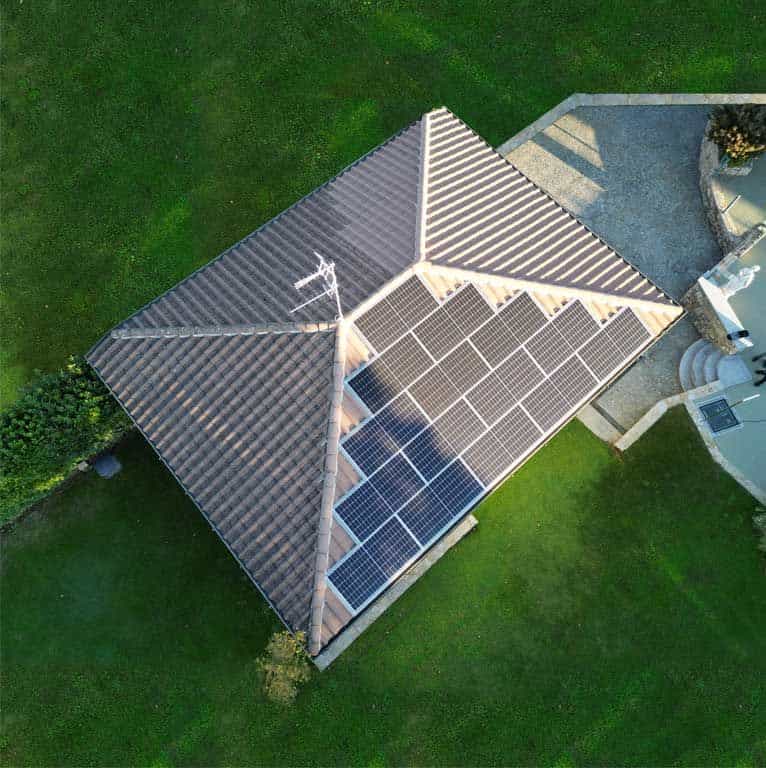

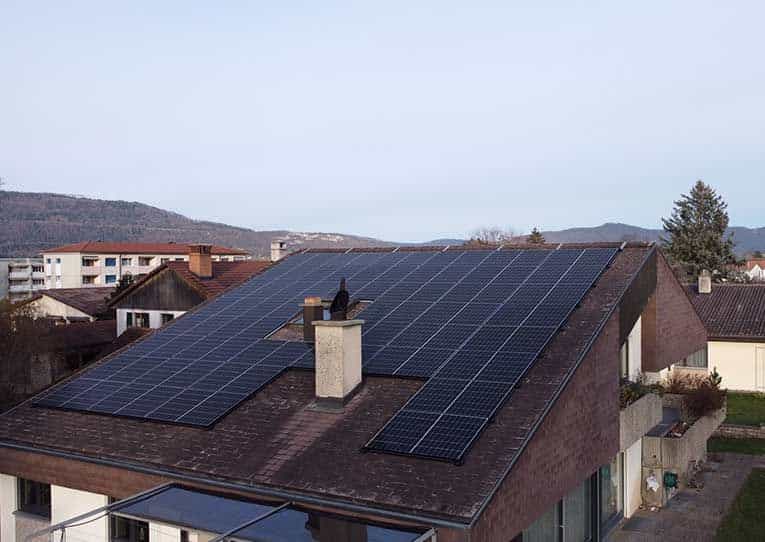

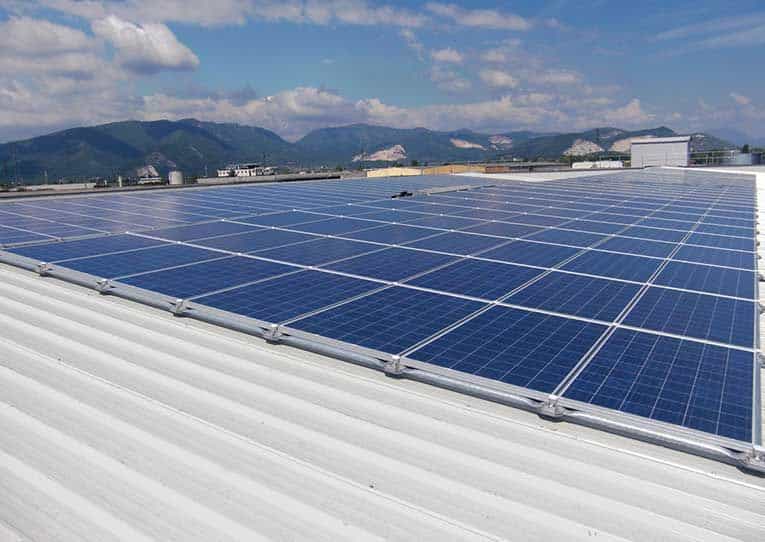

Sloping roof

Double-pitch

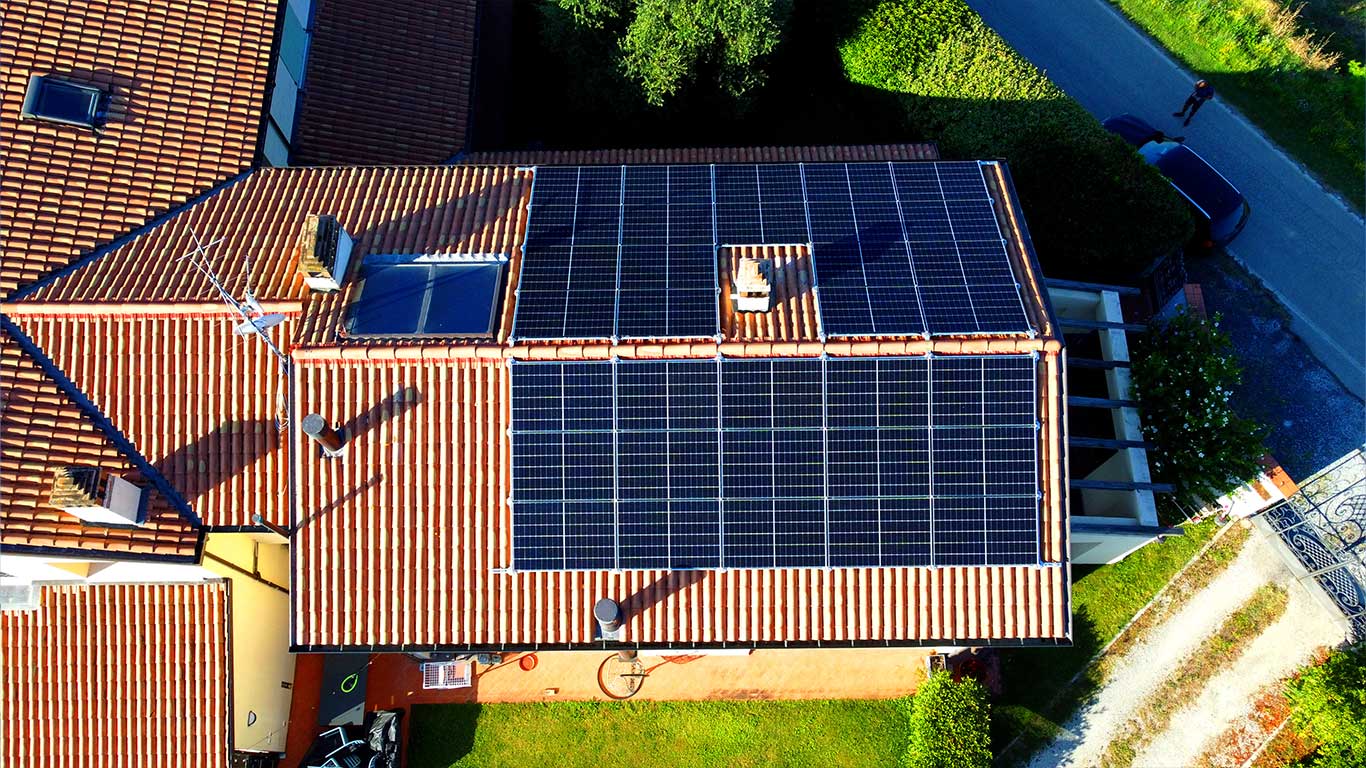

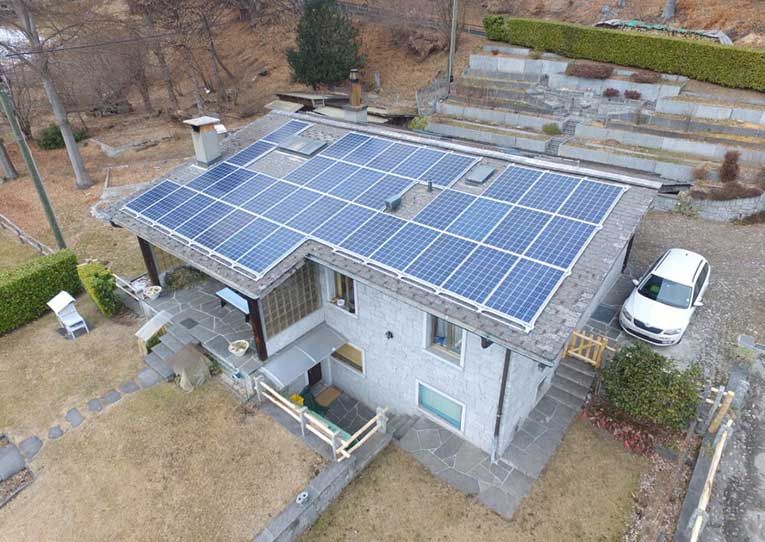

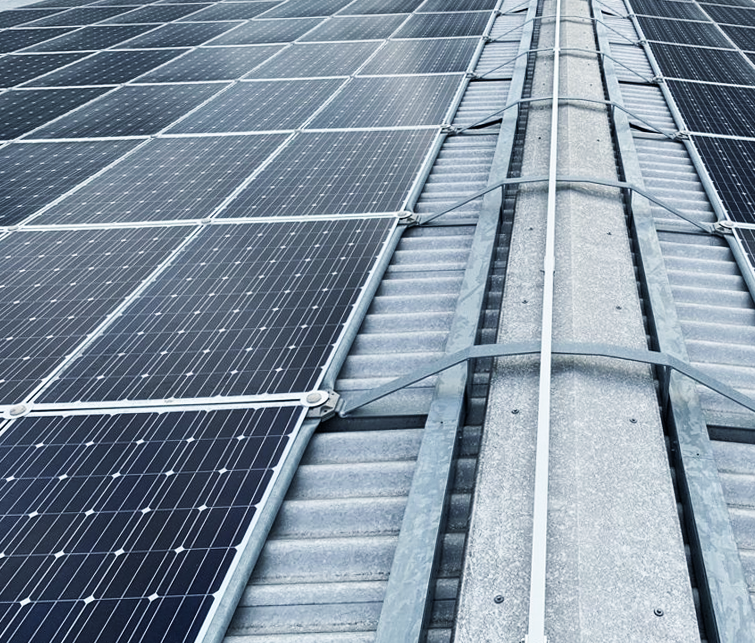

The Omniablok system for double pitched roof is a fully integrated grid mesh structure, tailored to the dimensions of the photovoltaic panel. The Omniablok structure rests on the roof surface, weighing approximately 6.5 kg/m2. It is securely fastened at the ridge point minimizing the risk of infiltration, and at just a few points along the lower part of the slope.

Few roof fixings

Minimizing the risk of infiltration

Lightweighted

6,5 kg/m² only

Walkable structure

Walking on the frames

Quick laying

Error risk-free quick-laying

Custom-made design

For your roof

Sloping roof

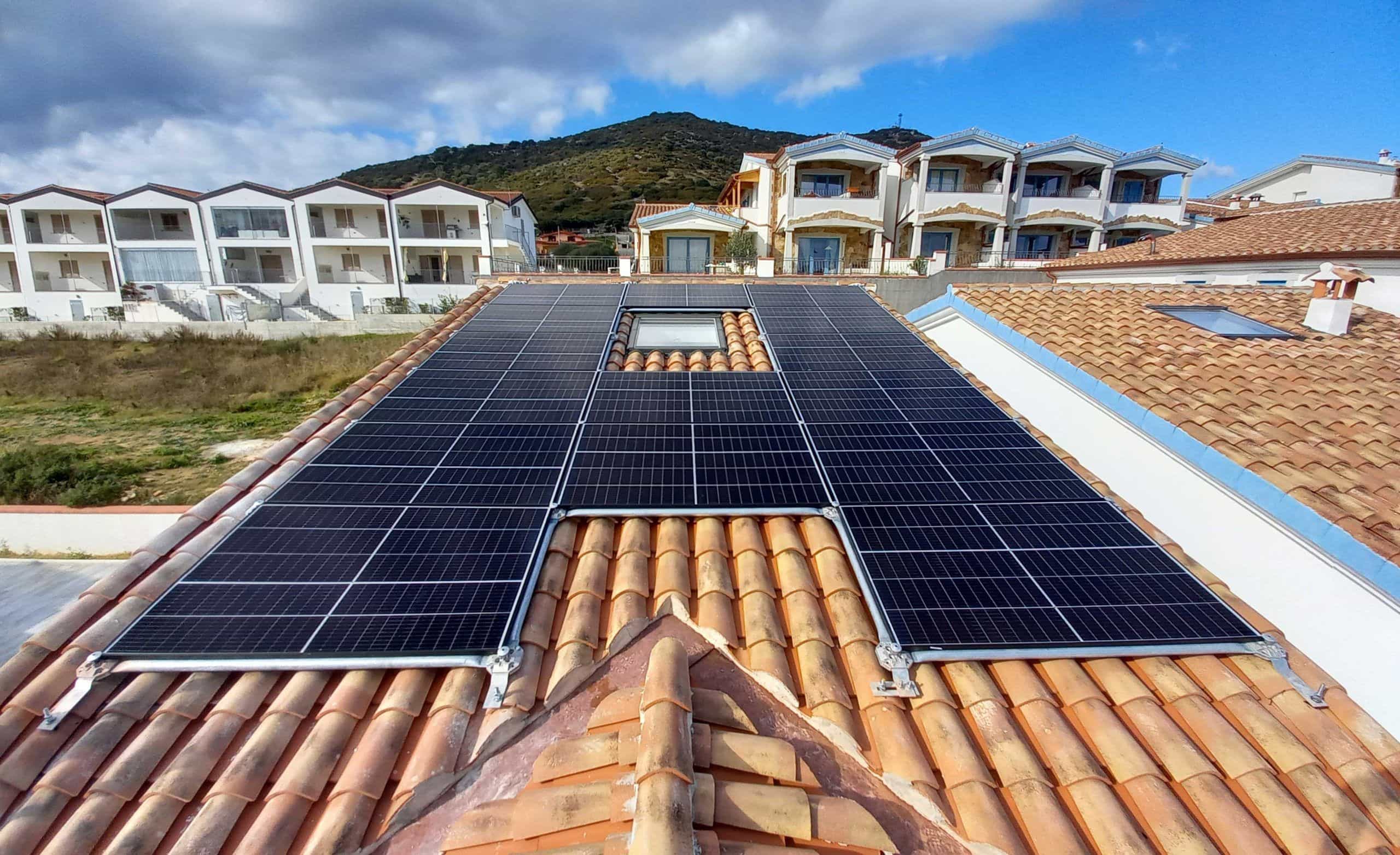

Single-pitch

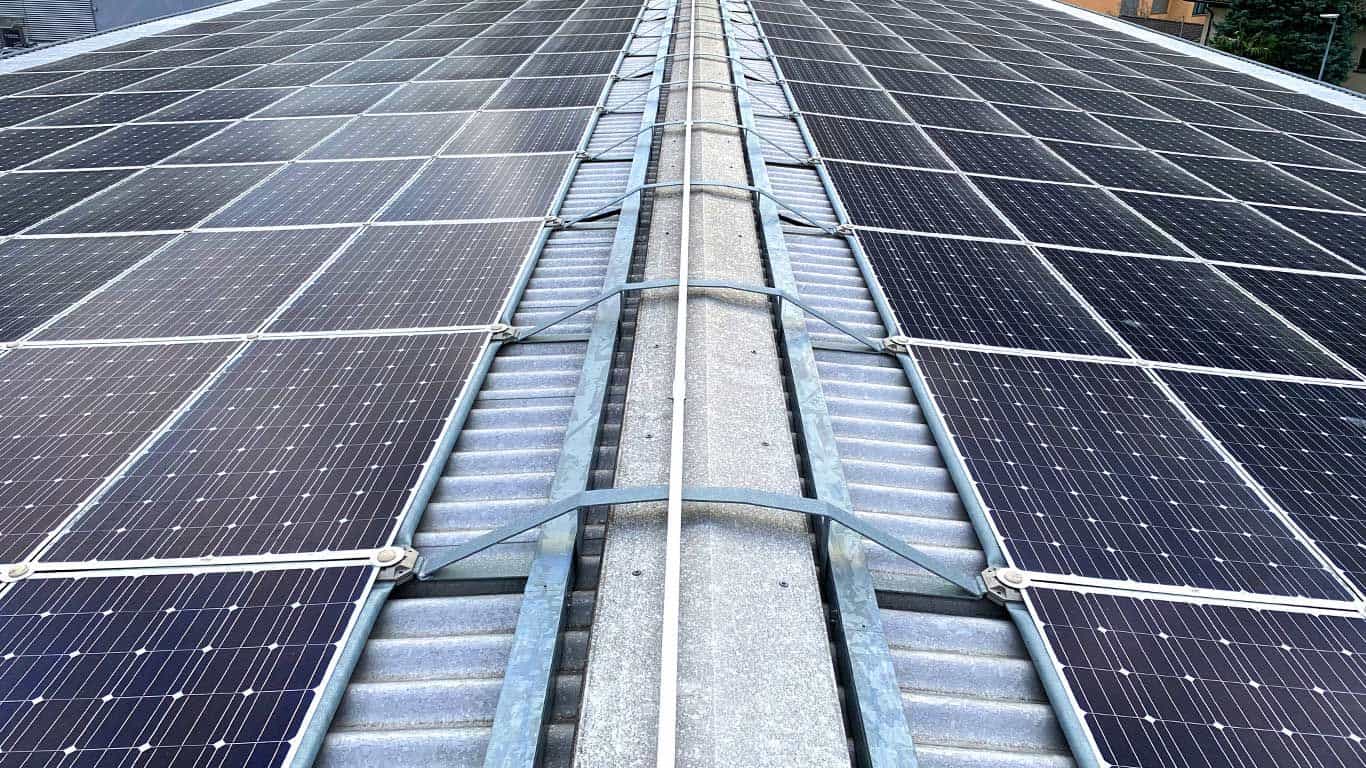

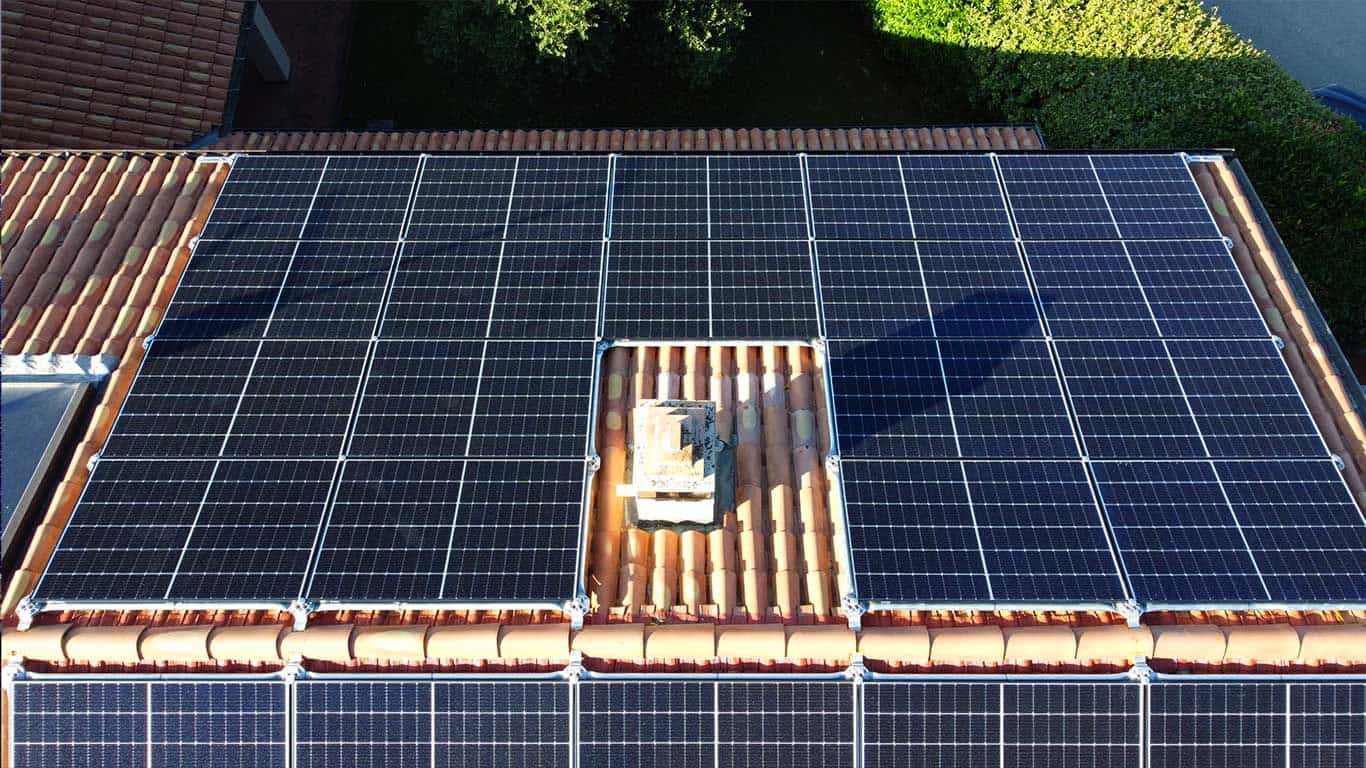

Every Omniablok structure is custom-designed to fit to the specifications of the roof and is adjusted based on the dimensions of the photovoltaic panel. The assembly process is straightforward and does not necessitate specialized operator training. The minimal number of fastenings, essential for stability, are concentrated at the ridge point and the lower section of the structure

Few roof fixings

Reduced risk of infiltration

Lightweight structure

6,5 kg/m² only

Walkable structure

Walking on the frames

Quick laying

Error risk-free quick-laying

Custom-made design

For your roof

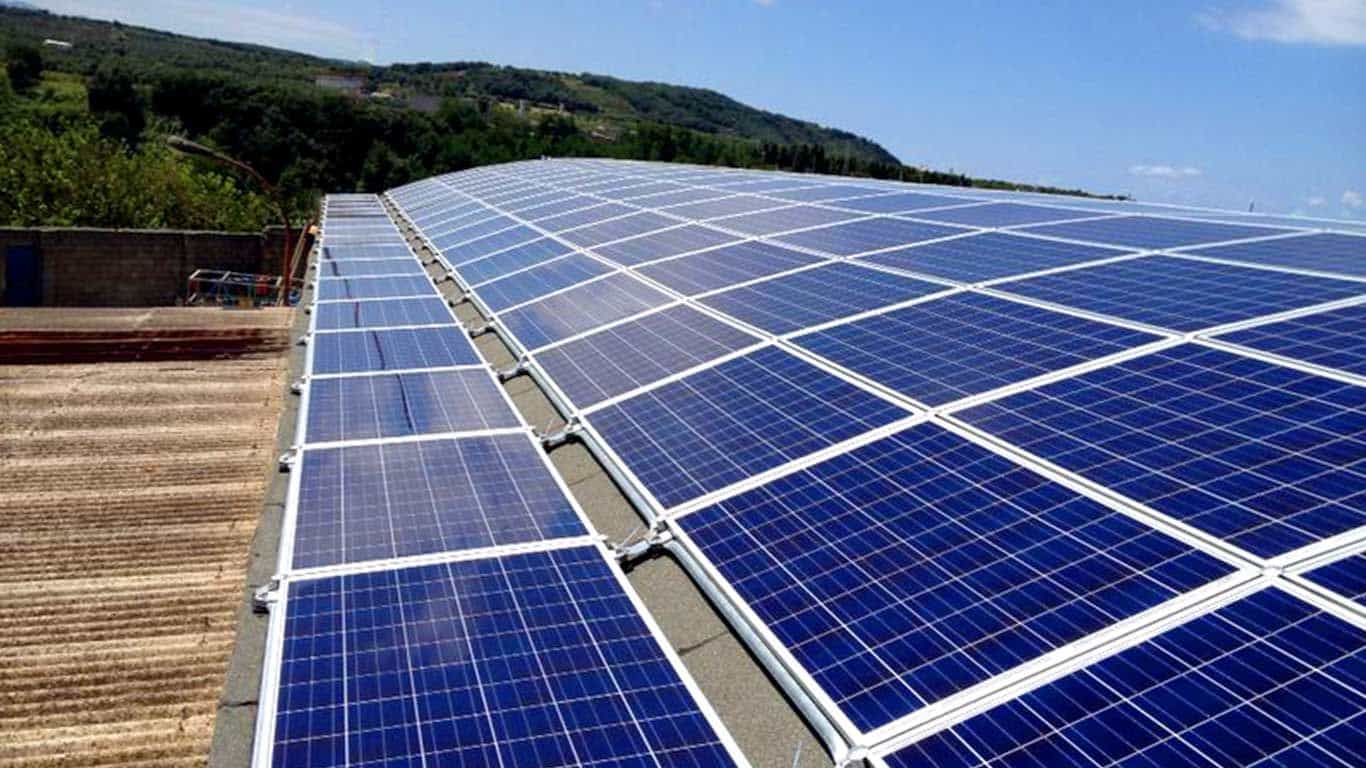

Barrel roof

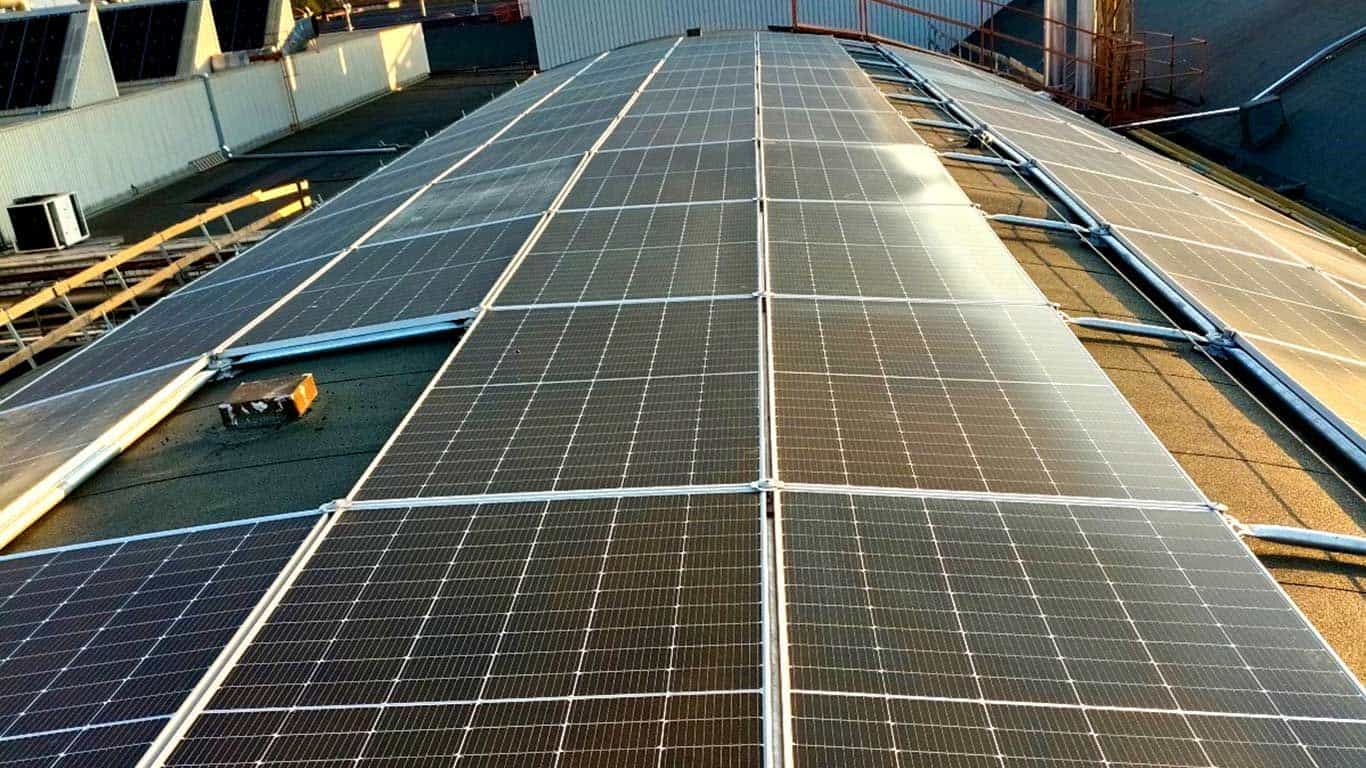

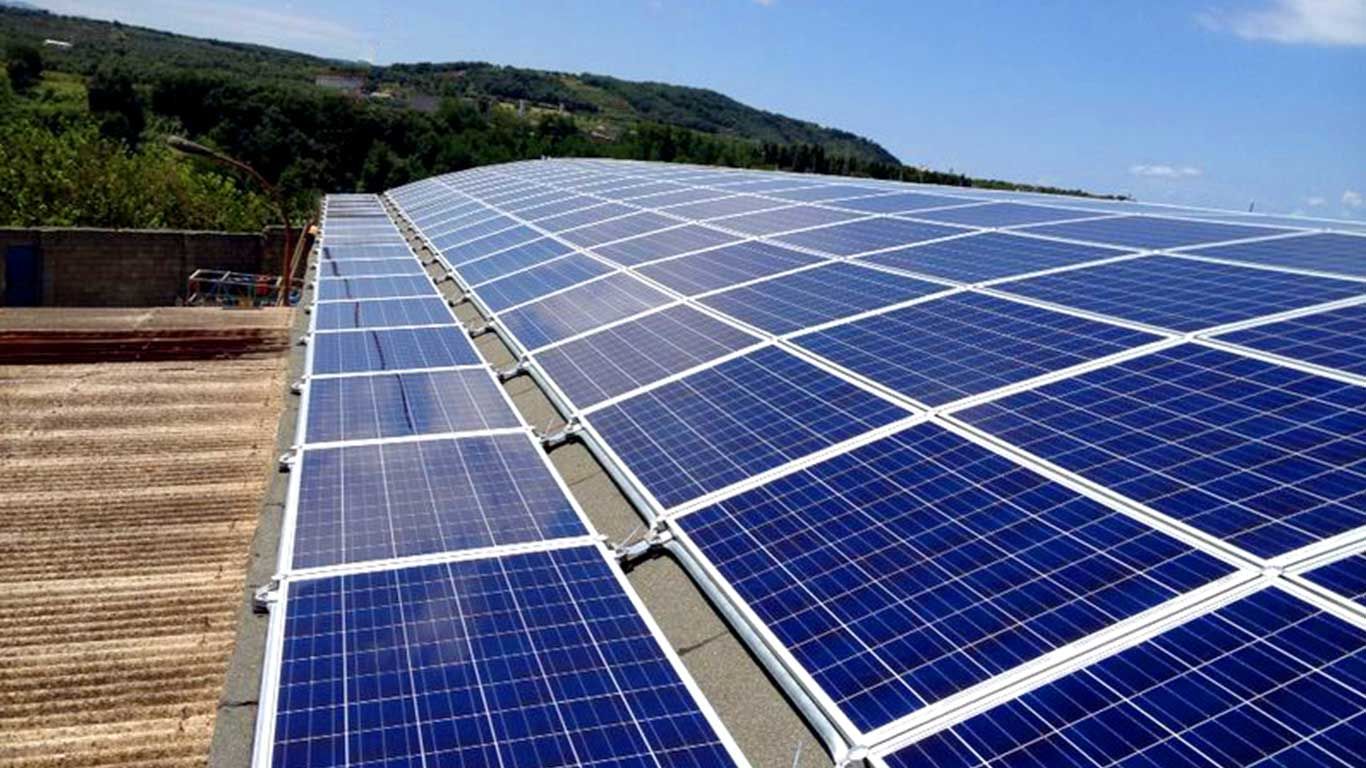

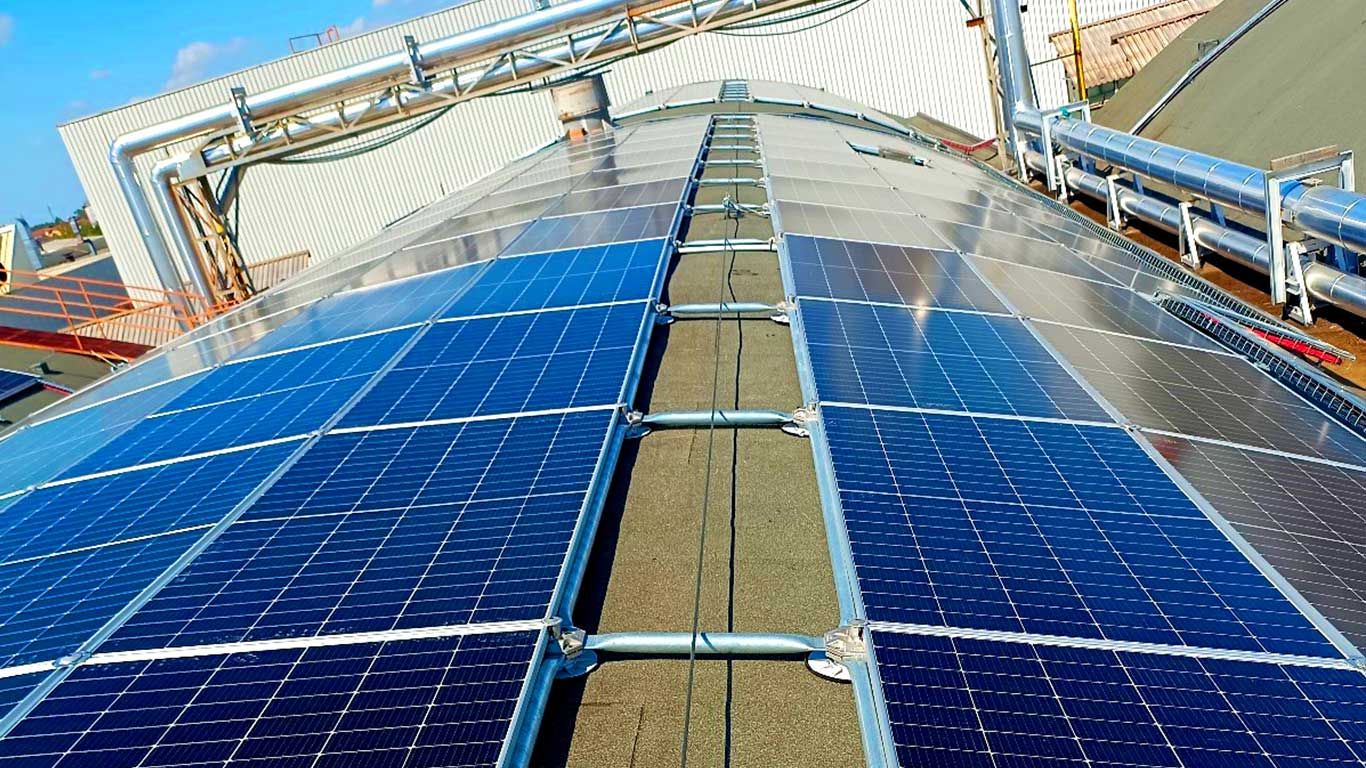

Constructed to match the curvature radius of the roof, The omniablok system for barrel roof is securely fastened at both ends using specialized brackets or tensioned steel chains.
To protect the roof surface, a fiberglass support plate or k-foot is applied beneath the Omniablok aluminium casting

Few roof fixings

Reduced risk of infiltration

Lightweighted

6,5 kg/m² only

Thermal Expansions

Without risk of breakage

Custom-made design

100% customizable

Quick laying

Error risk-free quick-laying

Integrated roof

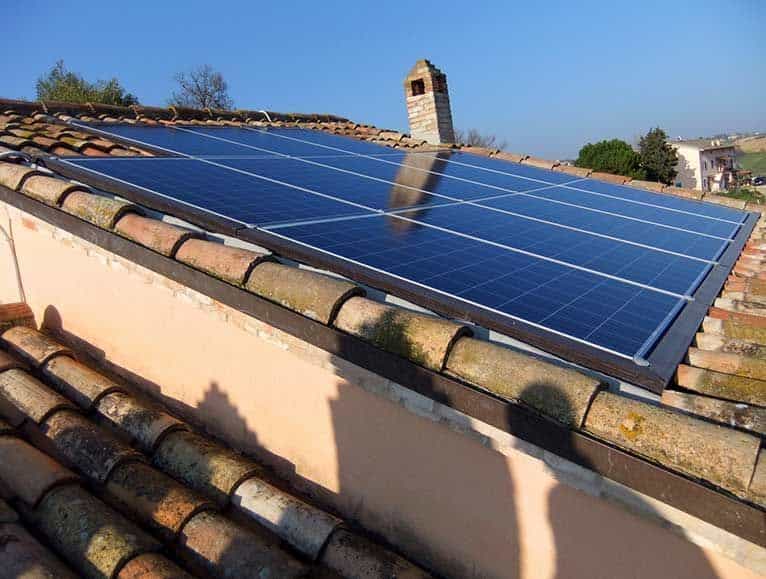

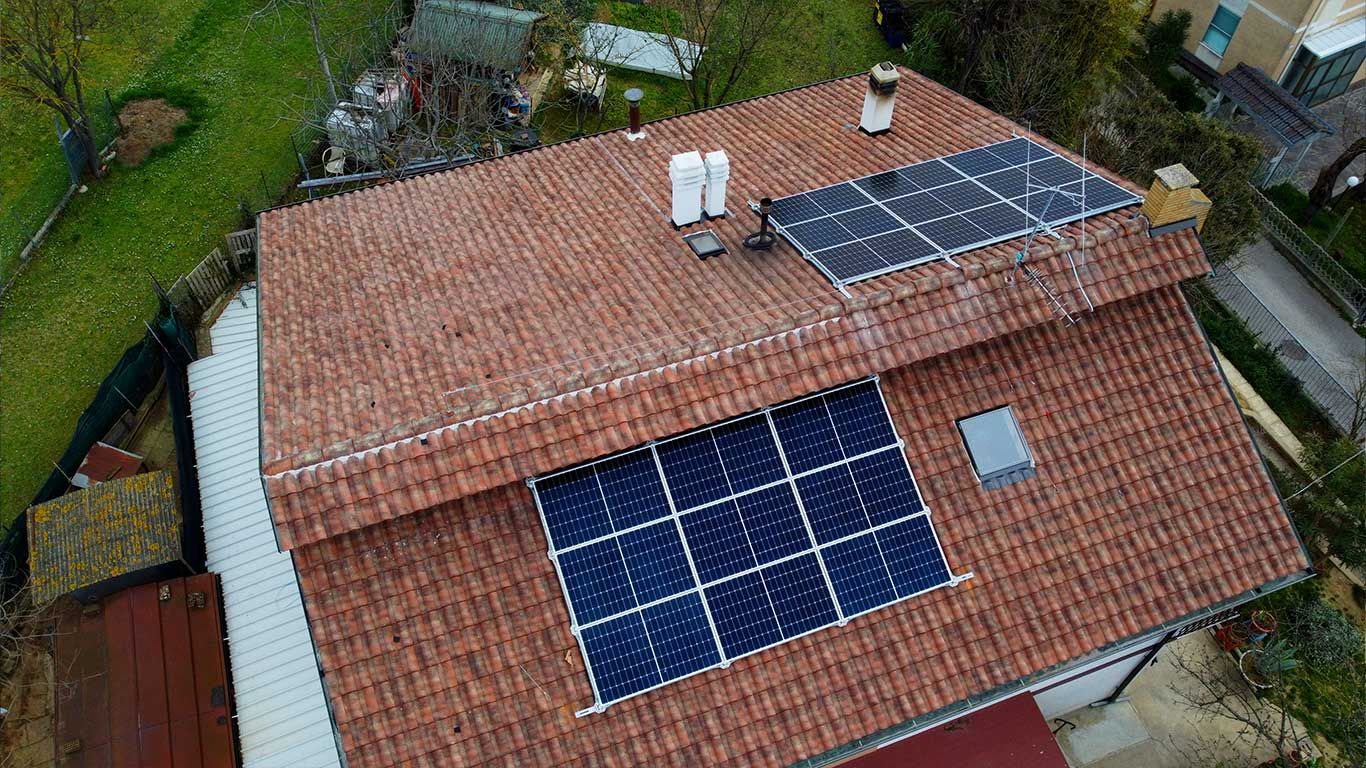

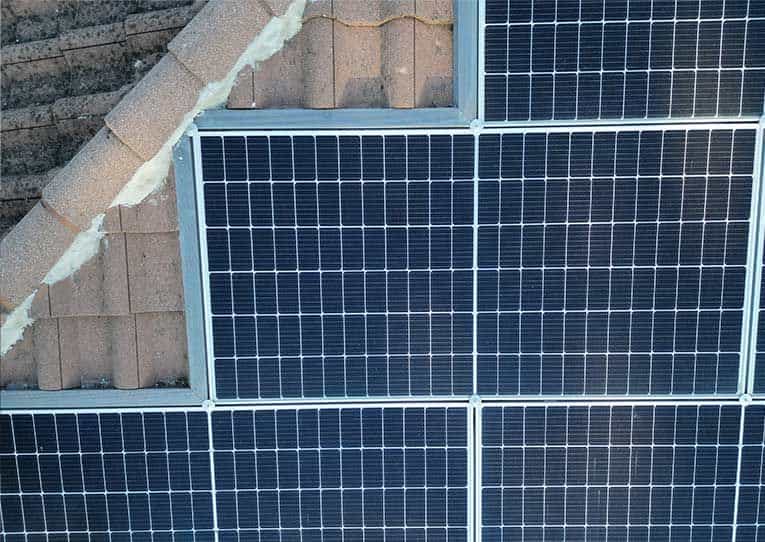

When installation necessitated the removal of roof tiles, the Omniablok frame will include a perimeter compensation profile. This profile comprises a thin, micro-drilled steel sheet that facilitates the ventilation of photovoltaic panels and prevents the formation of animal nests

Custom-made design

100% customizable

Prevents the formation of animal nests

Birds and others animals

Designed for utmost aesthetic appeal

structural integration

Air circulation

Maximizes ventilation

Design

Technical Support

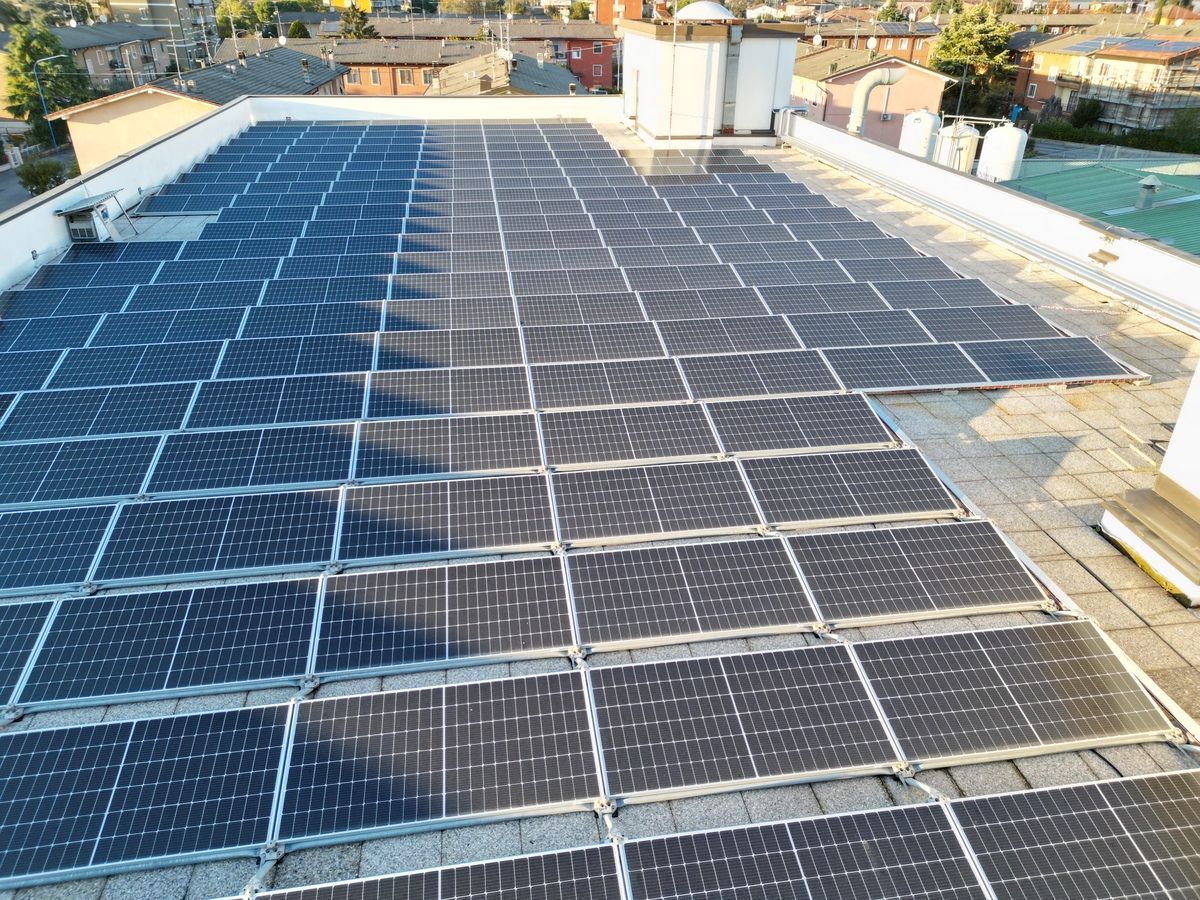

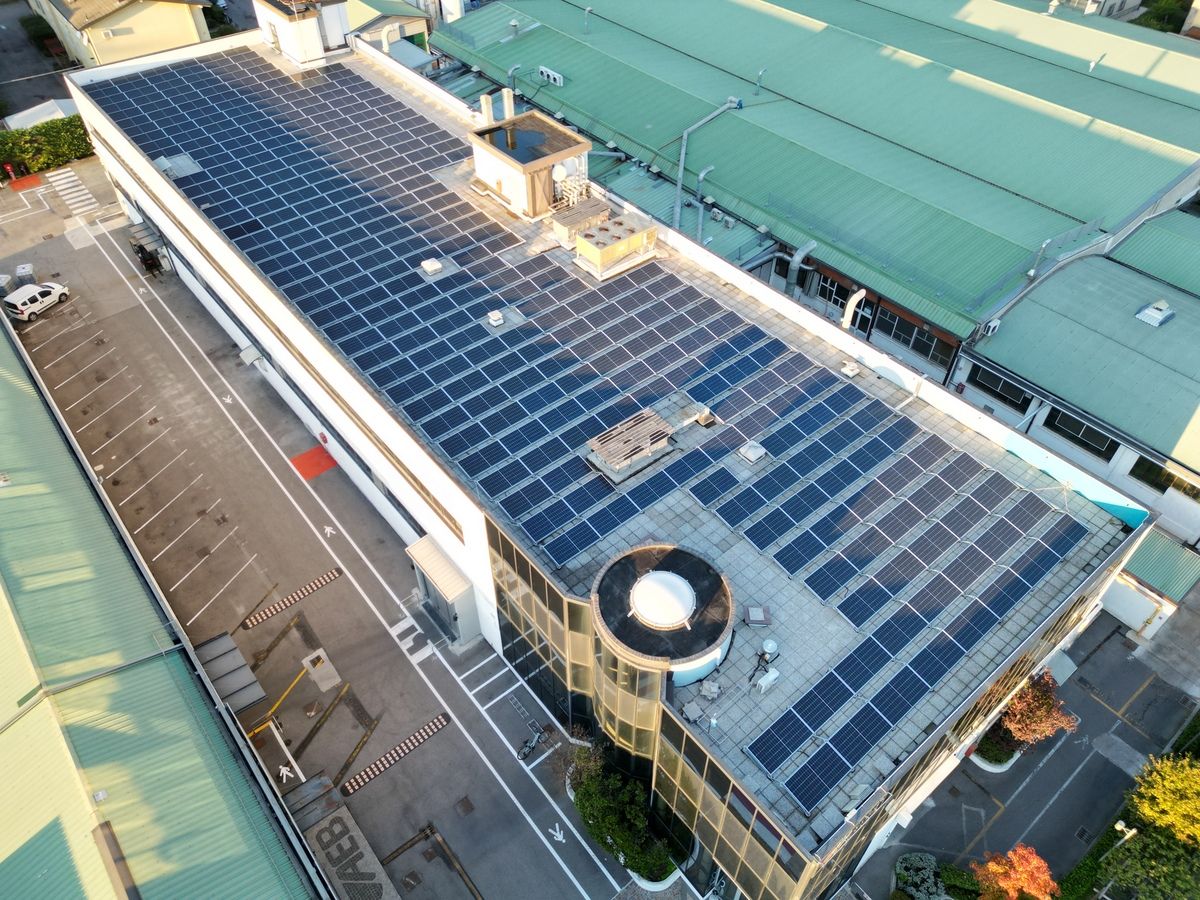

Flat Roof South

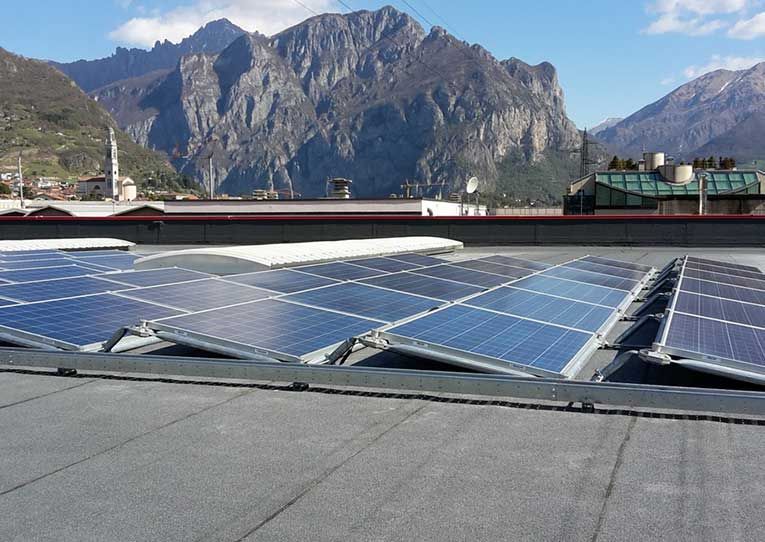

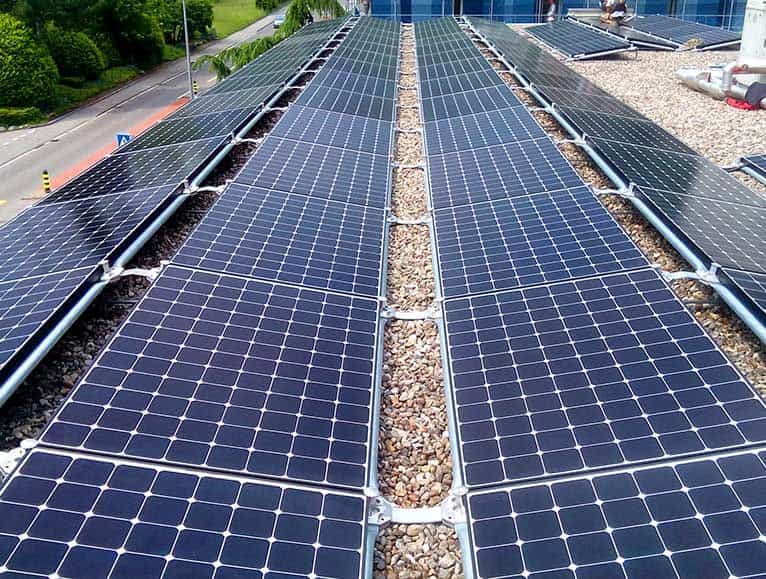

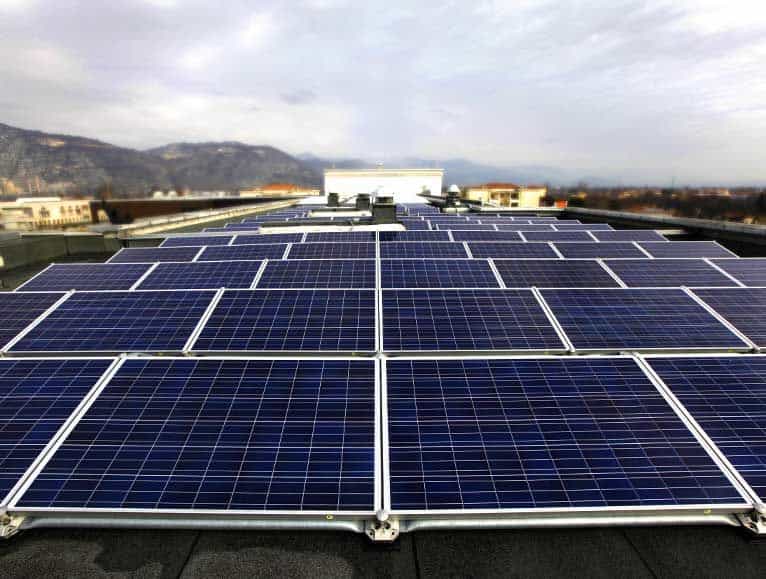

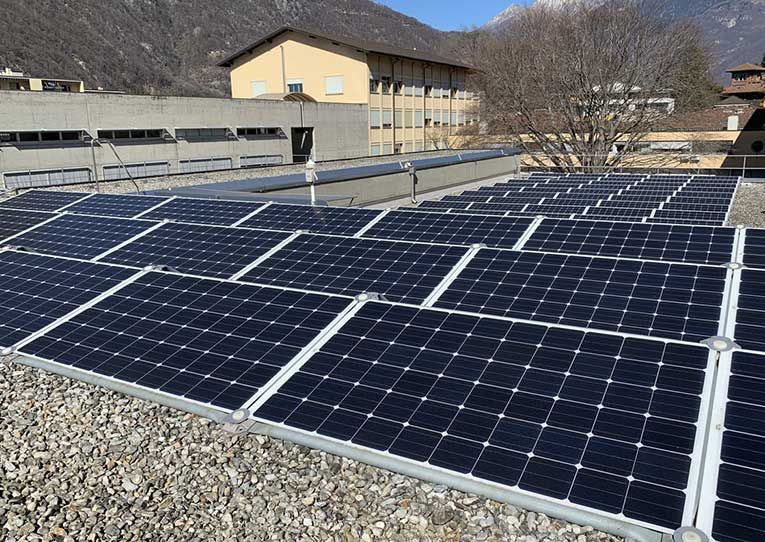

Fully supported on the roof surface, the Omniablok system seamlessly accommodates flat surfaces. Its cohesive design forms a unified structure, with an approximate incidence of
9,8 Kg/m². Whether oriented to the south or east-west, The system allows adjustable panel tilting to meet desired specifications. Additionally, a thin rubber layer is positioned beneath each casting to safeguard the roof membrane.

Structural fixation

Perimeter parapet

Lightweight structure

9,8 kg/m² only

No ballast weight

Or further weight

Panels tiltinig upon request

from 0° to 25°

Quick laying

Error risk-free quick-laying

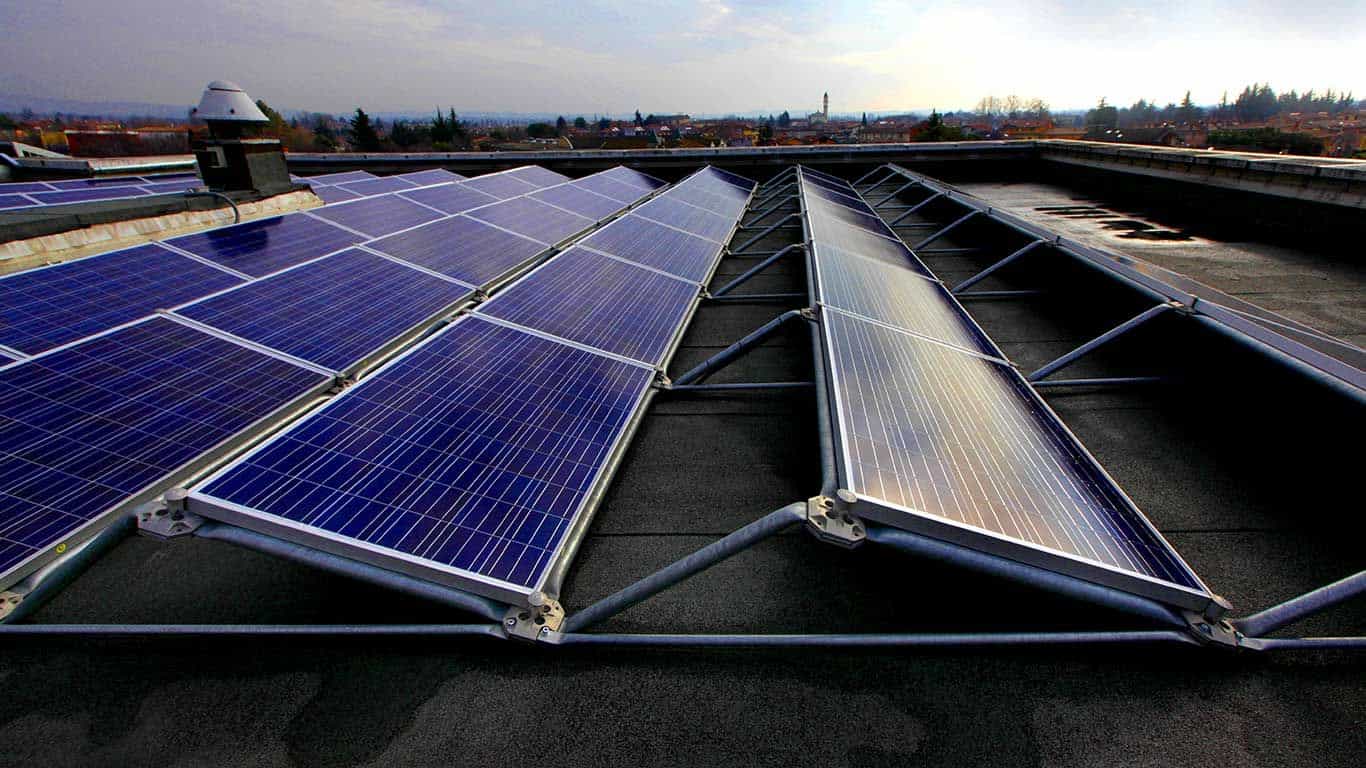

Flat roof east or west

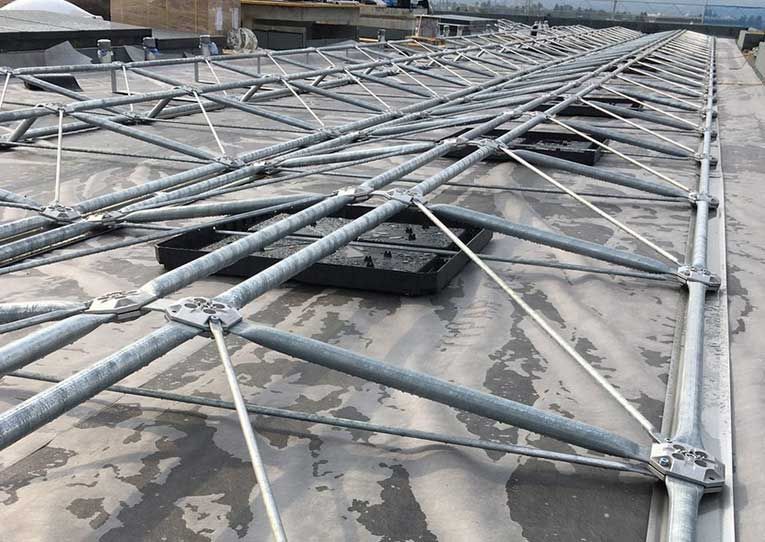

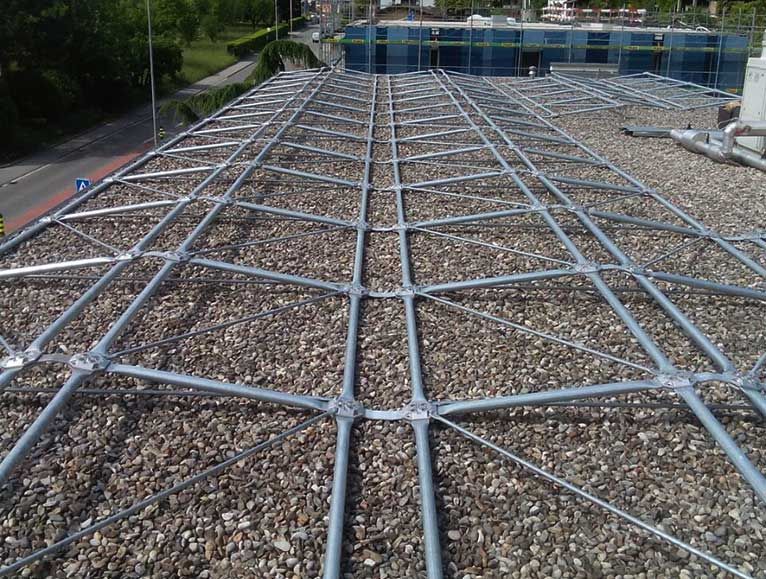

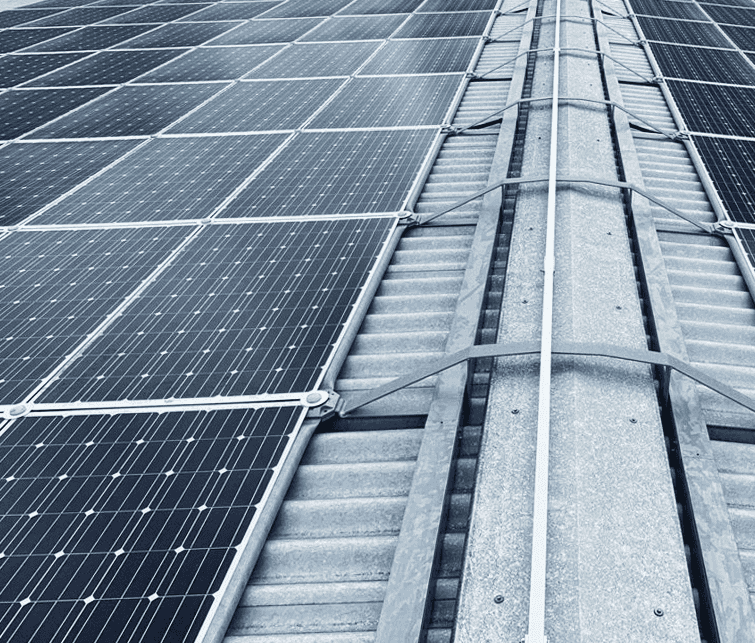

A standout feature of the Omniablok system of flat roofs is its minimal weight per square meter. Traditional concrete ballasts often exceed the load capacity of many older floor structures. Consequently, the Omniablok structure, with its interconnected grid mesh design that eliminates the need for ballasts, is ideal for such applications. Securement is achieved at the perimeter ends using tensioned steel chains.

Structural fixation

Perimeter parapet

Lightweight structure

9,8 kg/m² only

No ballast weight

Or further weight

Panels tiltinig upon request

from 0° to 25°

Quick laying

Error- free system

Grid module for photovoltaic panels

Our staff is at your complete disposal for any kind of info or quotations

Find out what benefits make Omniablok the solution to your problems:

Omniablok benefits

Lightweighted

The structure’s weight is minimized due to its complete connectivity

Quick laying

Error risk-free quick-laying

No drilling

Few roof fixings are  required

Patented

In Italy and abroad

Certified

Upon request, the resistance certification is drawn up

No ballast weight

Being a modular reticular linked structure
